Socal28's S2000

Dyno's
Alignment specs


Any of the pictures can be enlarged by clicking on them.

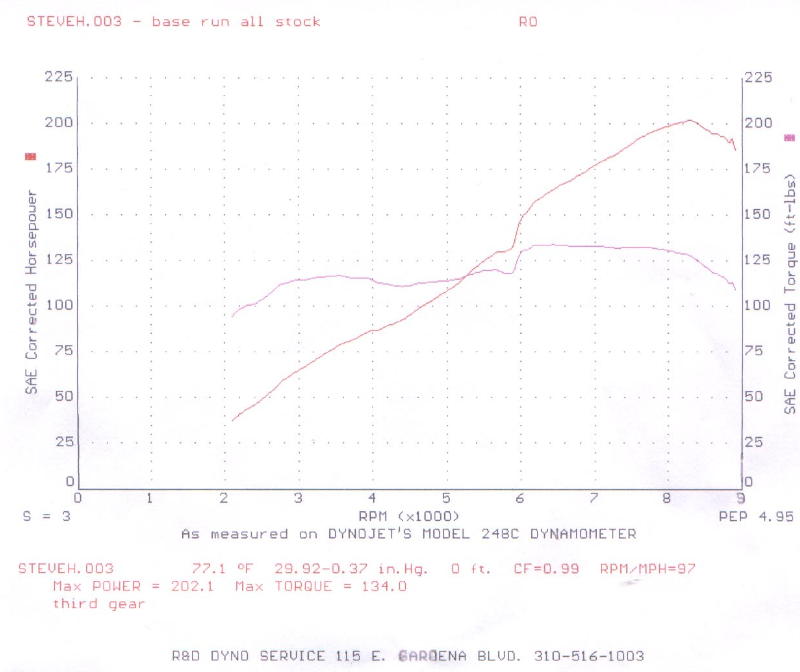

Dyno for stock with 2500 miles

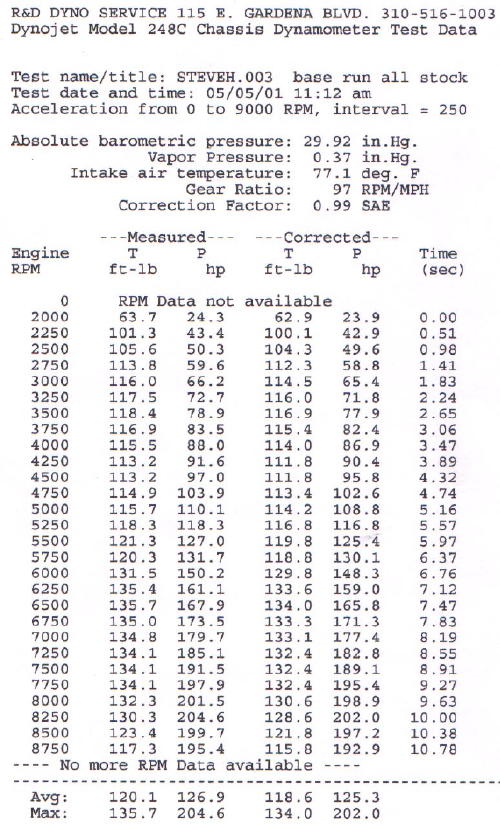

Data for stock dyno




Last alignment done on 02/19/2002
(numbers are all in degrees)

Left Front                                                                                            Right Front

Corrected
Before
Specified Range

Corrected
Before
Specified Range
-0.7
-1.5
-1.0 -- 0.0
Camber
-0.9
-1.0
-1.0 -- 0.0
7.4
6.5
5.3 -- 6.8
Caster
6.7
7.2
5.3 -- 6.8
-0.0
0.13
-0.08 -- 0.08
Toe
-0.03
0.15
-0.08 -- 0.08

Front


Corrected
Before
Specified Range
Cross Camber
0.2
-0.4
... -- ...
Cross Caster
0.7
-0.6
... -- ...
Total Toe
-0.03
0.28
-0.16 -- 0.16

Left Rear                                                                                              Right Rear

Corrected
Before
Specified Range

Corrected
Before
Specified
-1.9
-2.4
-2.0 -- -1.0
Camber
-1.8
-2.0
-2.0 -- -1.0
0.24
0.27
0.16 -- 0.32
Toe
0.28
0.81
0.16 -- 0.32

Rear


Cross Camber
-0.1
-0.5
... -- ...
Total Toe
0.53
1.08
0.32 -- 0.64
Thrust Angle
-0.02
-0.27
... -- ...
